Chevron & Profiled Belting

Textile-reinforced base belts with moulded profiles for improved material retention on inclines.

Product overview

Built around the duty.

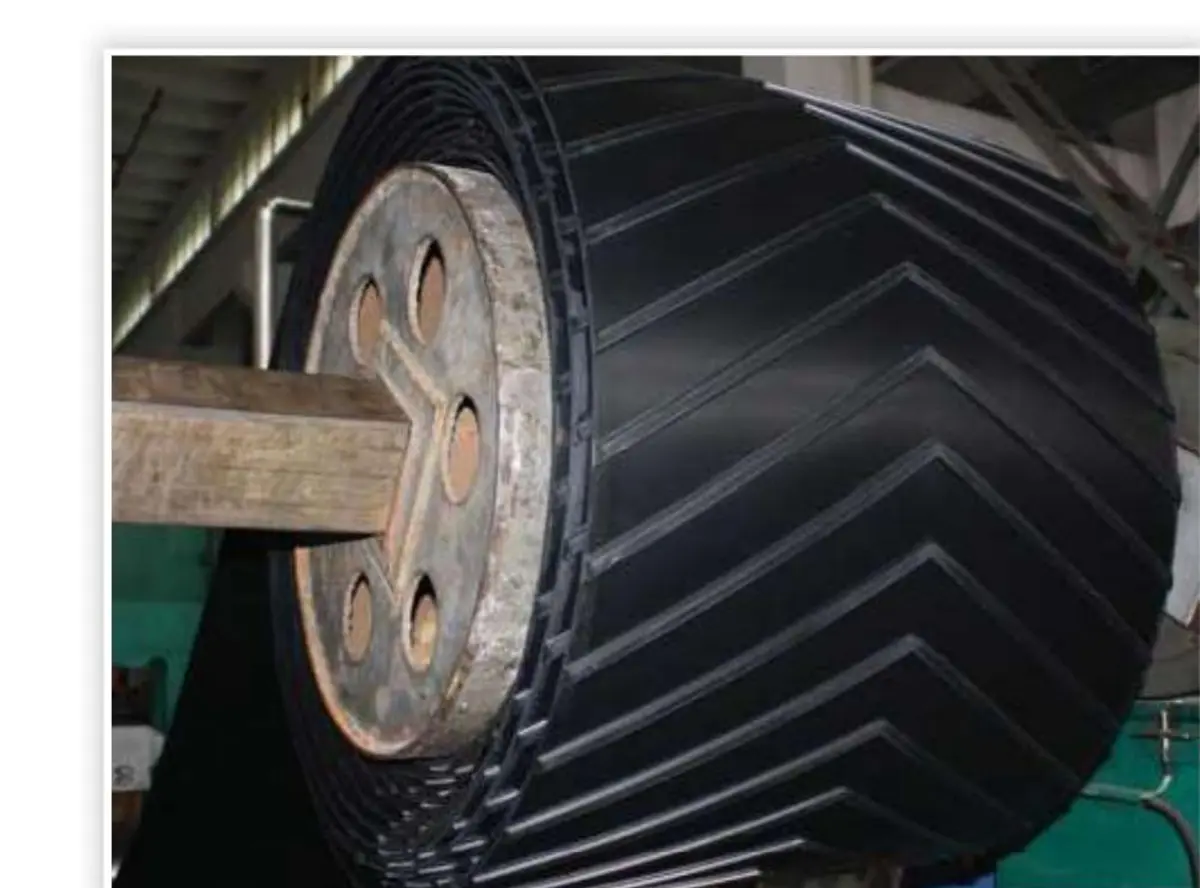

Double Arrow chevron conveyor belt on a production reel — Integrally moulded chevron profile on a textile-reinforced base belt.

Chevron and profiled belts add moulded carrying-side geometry to a textile-reinforced base belt. The carcass remains responsible for belt strength, flexibility and pulley behaviour, while the profile supports material retention on the incline.

Base-belt standardAS 1332:2000 where specified

Published profile height5–32 mm

Published belt widthUp to 1,500 mm*

Base carcassMulti-ply textile

Construction & selection

What defines this product.

Multi-ply textile base belt
Integrally hot-moulded profiles reduce separation risk
Flexible profile compound supports fatigue resistance
Open patterns assist drainage in wet duties
Profile geometry selected for material, capacity and incline

Typical applications

Where it fits.

01Inclined aggregate conveyors
02Mobile and fixed plant
03Bagged and unit handling
04Quarry, recycling and agricultural duties

Available configurations

Configure the construction.

01
Open-V and closed-V chevron
02
Open-Y and closed-Y patterns
03
Multi-V profiles
04
Rough-top and application-specific profile designs

Selection inputs

What we need to confirm.

01
Incline or decline angle
02
Material type, lump size and moisture
03
Required capacity and belt speed
04
Return-idler arrangement and pulley diameters
05
Profile height, pitch and open area

Specification note

*Maximum width depends on the selected profile and configuration. Profile height and pattern are not substitutes for correct carcass selection; belt tension, pulley diameters and transition geometry remain part of the base-belt design.
