Belt construction

Feeder Belting

Hot-moulded textile belt constructions for controlled feeding, tracking and edge-spillage management.

Product overview

Built around the duty.

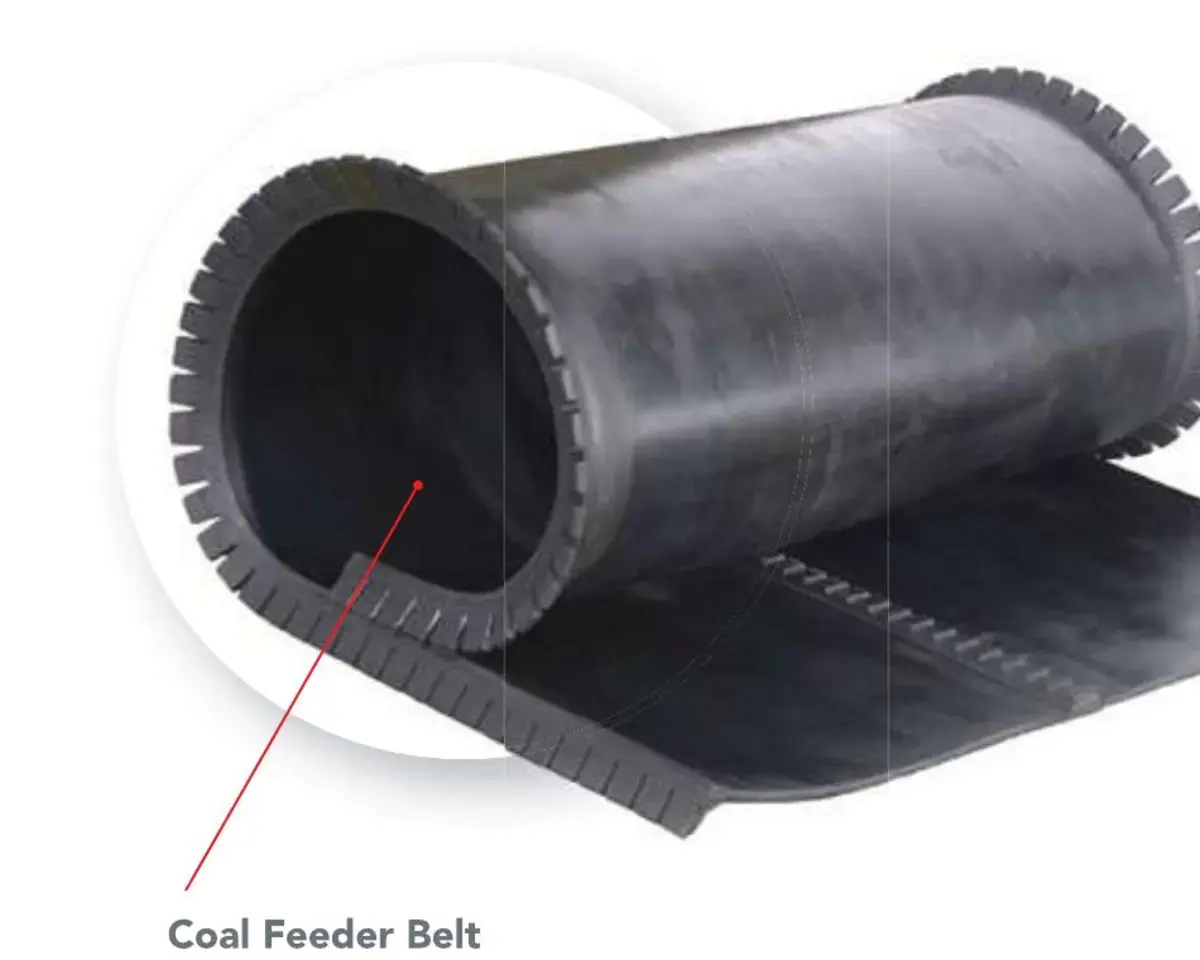

Double Arrow coal feeder conveyor belt — Coal feeder belt with moulded edge features; flat, flanged and V-guided arrangements are available.

Feeder belts combine a textile-reinforced base belt with application-specific edge flanges, bottom V-guides or cleated profiles. Integrally moulded and vulcanised features provide a more controlled construction than cold-bonded replicas for coal feeders and other specialised metering duties.

Base carcassTextile reinforced

Published common widths835 / 965 / 1,165 mm

Profile manufactureHot moulded and vulcanised

Design basisExisting feeder geometry

Construction & selection

What defines this product.

Textile-reinforced base belt
Integrally hot-moulded flanges and guides
Notched flange design supports flexing around smaller pulleys
V-guide options assist centralisation
Mechanical-fastener compatibility where specified

Typical applications

Where it fits.

01Coal-fired power station feeders
02Cogeneration and process plants
03Controlled metering conveyors
04Special industrial feeder systems

Available configurations

Configure the construction.

01
Flat top with bottom V-guide
02
Top edge flanges with flat bottom
03
Top edge flanges with bottom V-guide
04
Cleated or combined custom configurations

Selection inputs

What we need to confirm.

01
Existing belt and feeder model
02
Approved belt width and cross-section
03
Pulley and V-groove dimensions
04
Flange height, notch and guide geometry
05
Material temperature, fines and operating load

Specification note

Published common widths are reference sizes, not a universal fit. Final belt width, flange, notch and V-guide geometry must be confirmed from the existing belt or approved feeder drawing before manufacture.

Need help specifying a belt?

Send us your conveyor details.

Request technical input
