Belt construction

Sidewall Conveyor Belting

Cross-stabilised base belts with corrugated sidewalls and cleats for steep-angle material handling.

Product overview

Built around the duty.

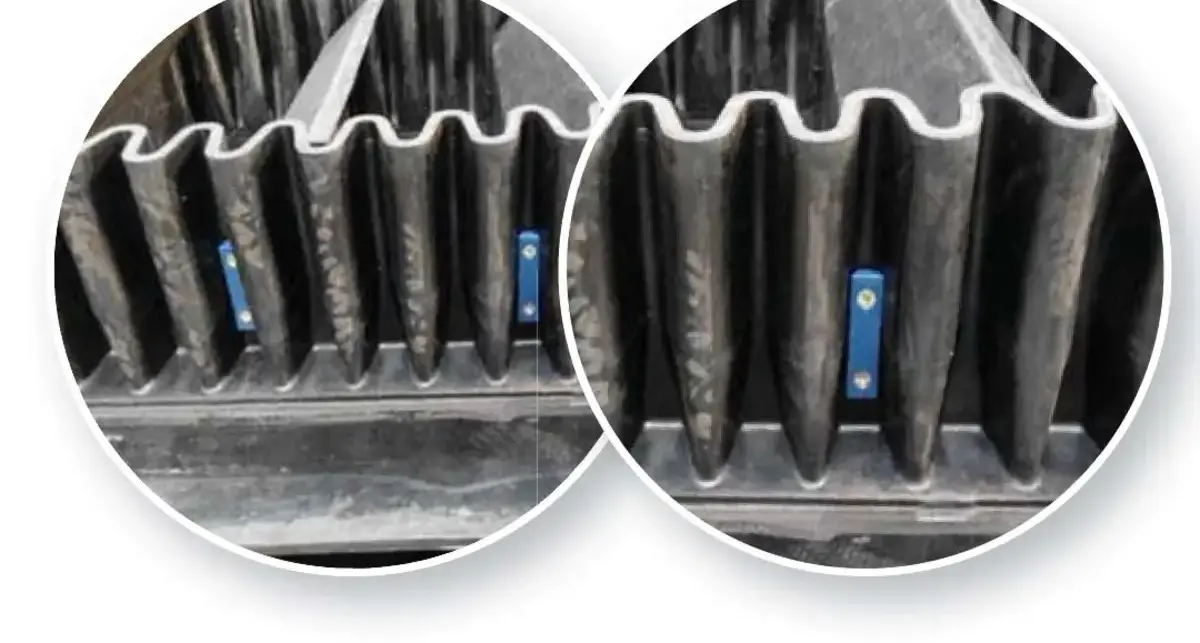

Double Arrow corrugated sidewall conveyor belt — Corrugated sidewall construction used with a cross-stabilised base belt and application-selected cleats.

Sidewall systems combine a longitudinal tensile member with a transversely rigid base belt. Corrugated sidewalls and cleats retain material on steep inclines, allowing compact layouts and fewer transfer points.

Base-belt standardsAS 1332 / AS 1333 as applicable

Conveying geometryHorizontal to vertical

Carcass optionsTextile or steel cord

System elementsBase belt, sidewalls and cleats

Construction & selection

What defines this product.

Cross-stabilised textile or steel-cord base belt
Polyester monofilament or steel reinforcement controls transverse collapse
Hot-vulcanised sidewalls and cleats
Fabric-reinforced sidewalls available for higher profiles
Carcass selected for tensile load and pulley geometry

Typical applications

Where it fits.

01Steep-incline conveying
02Compact plant layouts
03Vertical lift sections
04Space-constrained transfers

Available configurations

Configure the construction.

01
Textile or steel-cord tension member
02
Polyester-monofilament or steel cross-stabilisation
03
Extruded or moulded cleats
04
Sidewalls and cleats supplied vulcanised to the base belt or separately where agreed

Selection inputs

What we need to confirm.

01
Vertical lift, incline and route layout
02
Capacity, bulk density and maximum lump size
03
Sidewall height and cleat spacing
04
Pulley diameters and return-side support
05
Material temperature and cover duty

Specification note

The base-belt carcass, sidewall height, cleat spacing and reinforcing are designed as one system. Final configuration depends on lift, capacity, lump size and pulley arrangement.
